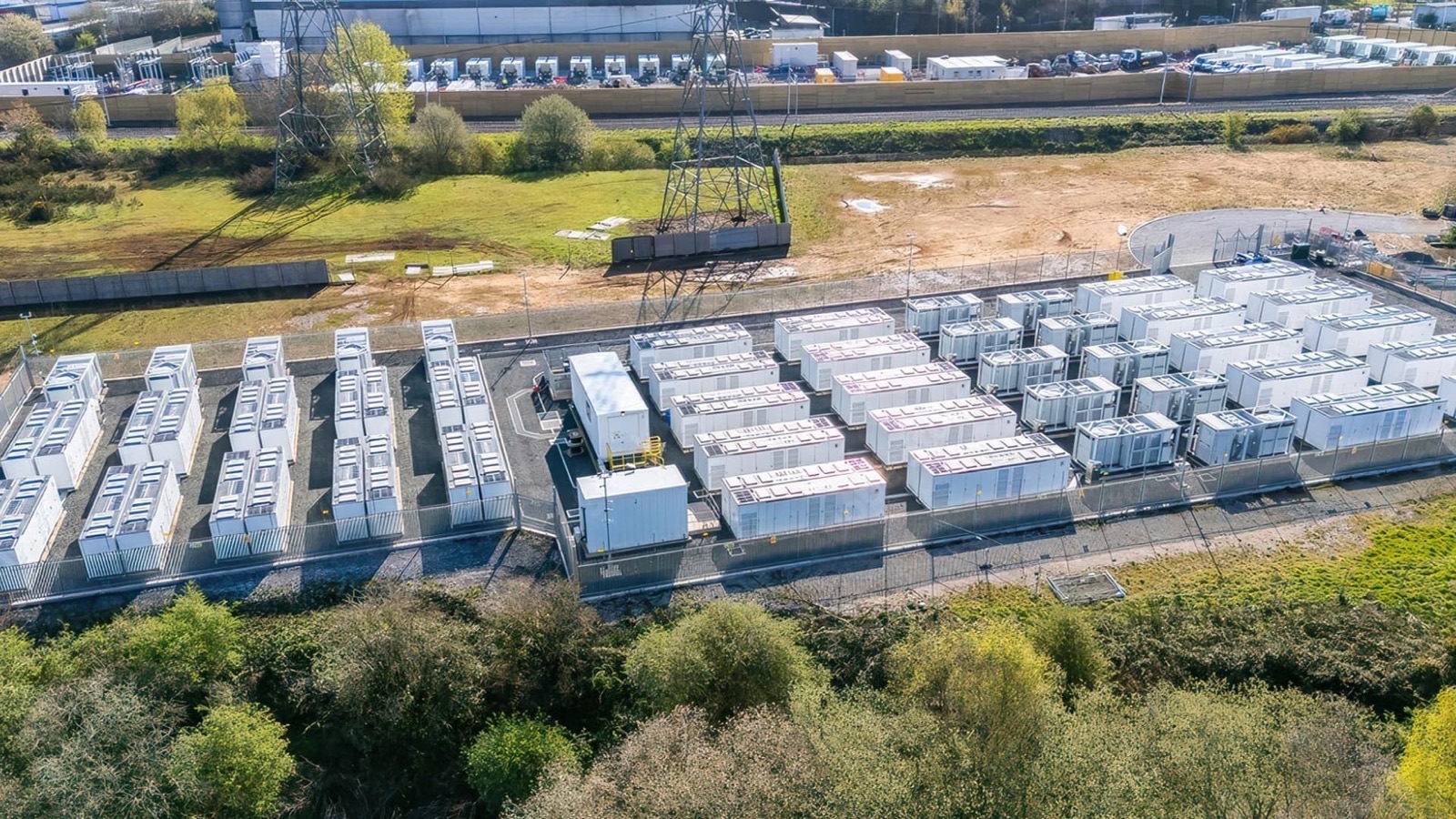

Permanent external acoustic barriers for energy-infrastructure assets where transformer hum, plant noise and boundary noise need to be controlled without compromising access, maintenance or operational resilience.
Substations, transformers, power stations and associated plant can place continuous or tonal noise close to site boundaries. Where nearby homes, workplaces or sensitive receptors are affected, the barrier specification needs to do more than screen the view. It has to reduce noise transmission, manage reflections and fit around live infrastructure safely.
Air is a modular acoustic barrier system for permanent external infrastructure. For substation and transformer projects, it gives project teams a documented way to design barrier lines, returns, access points and acoustic faces around the equipment that is driving the noise issue.
A transformer noise barrier is usually considered where equipment noise travels directly to a receiver or reflects from hard site surfaces. The most effective layouts are designed around the noise source and the receptor, not just the site boundary.
On constrained utility sites, the barrier may need to wrap part of a compound, sit close to a transformer bay, protect one exposed boundary or form a longer perimeter screen. The acoustic design should account for gaps, line of sight, topography, access gates and any openings that could weaken performance.
Barrier height, returns and acoustic face selection need to follow the asset layout, access routes and nearby receptors.
Transformer bays and substation compounds near noise-sensitive boundaries.
Power-station or energy-centre plant where external equipment drives the acoustic requirement.
Utility plant compounds where a durable, permanent plant noise barrier is needed.
Projects where planning, permit or stakeholder evidence requires documented acoustic performance.
For substations and transformers, small specification decisions can make a material difference. A gap beneath a barrier, an untreated access route or the wrong acoustic face can reduce the benefit of an otherwise robust system.
The starting point should be the acoustic model or consultant assessment. From there, the project team can define the barrier geometry, whether an absorptive face is needed, how the structure interfaces with foundations and how the installation sequence avoids unnecessary disruption to site operations.
Transformer hum, cooling equipment, generation plant or combined site noise.
Nearby homes, workplaces, public routes or other sensitive receptors.
Height, length, returns, overlaps and gate positions.
Absorptive treatment where reflected sound needs to be controlled; reflective treatment where airborne insulation is the primary requirement.
Foundations, lifting approach, live-site access, buried services and maintenance clearances.
Air uses modular acoustic cassettes to provide a permanent external barrier system for infrastructure sites. The system is designed to support efficient installation using a quick-slot cassette format, helping contractors plan barrier works around constrained compounds and live assets.
Air achieves DLR 28-29 dB airborne sound insulation depending on system variant. Air Absorb incorporates a mineral wool core and achieves up to DLalpha 8 dB sound absorption under test conditions. For transformer and substation layouts, that distinction matters: absorption can help reduce reflected sound inside compounds, while reflective barrier sections may suit locations where the main requirement is airborne sound insulation.
Air is tested to BS EN 1793-1 and BS EN 1793-2 acoustic barrier standards.
Air achieves DLR 28-29 dB airborne sound insulation depending on system variant.
Air Absorb achieves up to DLalpha 8 dB sound absorption under test conditions.
Substation and transformer sites are rarely simple rectangles with open access. Barrier routes may need to work around gates, bunds, cable trenches, ducts, cabinets, lighting, security fencing and maintenance zones. That makes early coordination between acoustic, civil, electrical and site teams essential.
The Air cassette approach supports efficient installation planning because the barrier can be coordinated as a modular system rather than treated as generic fencing. Foundations, post centres, gates, corners and terminations should still be designed for the individual site, including structural loading and ground conditions.
Plan barrier routes around operational clearances and maintenance access.
Coordinate gates and removable sections where plant replacement or major maintenance is expected.
Resolve foundations around buried utilities and existing hardstanding before installation.
Use project-specific drawings and documentation so acoustic and civil requirements align.
For installation sequencing and disruption planning, use the on-site planning guide.
For energy assets close to receptors, the acoustic barrier choice may need to be explained to planners, regulators, procurement teams and community stakeholders. Clear test data and product documentation make that process easier to defend.
Air is tested to BS EN 1793 acoustic barrier standards, with documented airborne sound insulation and sound absorption values. Those values should be used with the project acoustic assessment to define the barrier height, line, acoustic face and any special interfaces. Procurement teams can also review Air's testing and validation guidance.
Use BS EN performance data in the acoustic specification rather than relying on generic fence descriptions.
Align acoustic documentation with drawings, schedules and procurement requirements.
Record assumptions around height, gaps, gate detailing and returns before approval.
Answers for project teams specifying permanent acoustic barriers around substations, transformers, power-generation plant and external utility assets.
Yes. Air is a permanent external acoustic barrier system that can be specified around substation and utility compounds, subject to project-specific acoustic design, foundations, access requirements and structural checks.
A transformer noise barrier is specified for acoustic performance, geometry and continuity. Height, line of sight, returns, gaps, gates and the acoustic face all affect the result. A general fence should not be treated as an acoustic solution unless its tested performance and detailing are suitable.
It depends on the site. Absorptive faces can help where reflected sound inside the compound is a concern. Reflective sections may be suitable where airborne sound insulation is the main requirement. The choice should follow the acoustic model and receptor locations.
Air achieves DLR 28-29 dB airborne sound insulation depending on system variant. Air Absorb achieves up to DLalpha 8 dB sound absorption under test conditions. Site performance still depends on barrier height, length, continuity, ground conditions and the surrounding layout.
Yes. Gates, returns, removable sections and terminations can be coordinated during design. These details need to be resolved carefully because gaps and openings can weaken acoustic performance if they are not designed into the barrier strategy.
No. This guidance is for permanent external acoustic barriers around substations, transformers, power-generation plant and utility assets.
Share the site layout, acoustic assessment or early design requirements and Air can help your team review the barrier approach, product variant and documentation needed for specification.
